  Rear porch column with
  downspout inside
  Contractor -
  Janal Heating

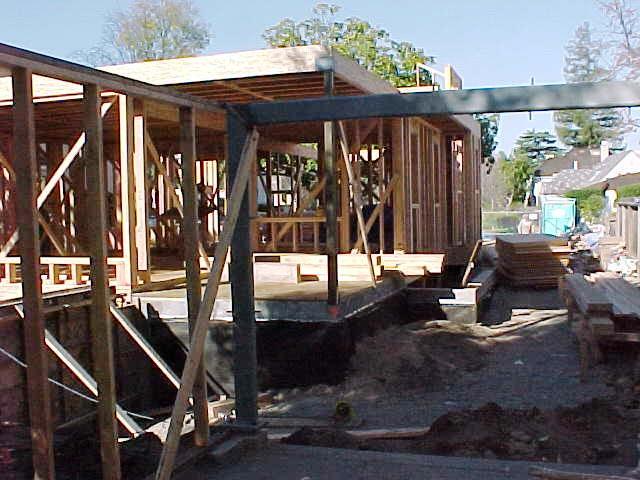

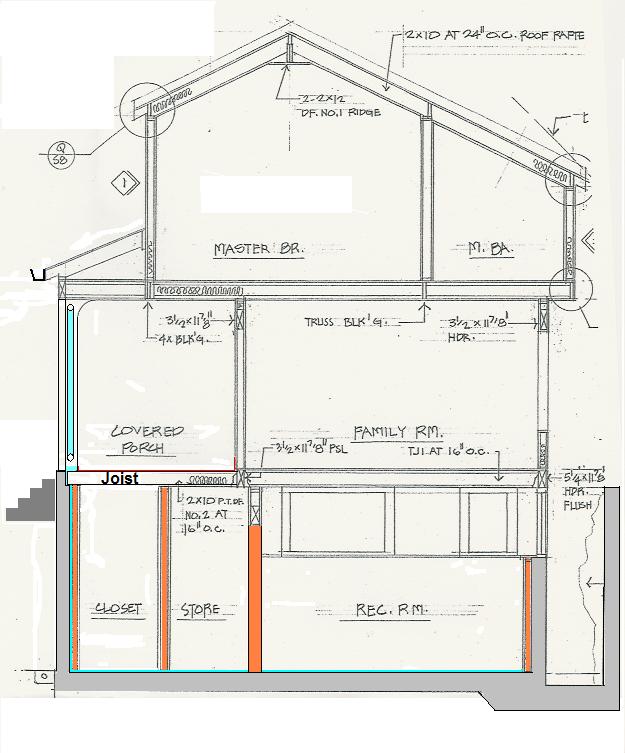

  Framer: structural post was placed at
  the corner of the the
  basement wall as per architectural drawings

  Framer: to create column structural
  post was covered by
  plywood.

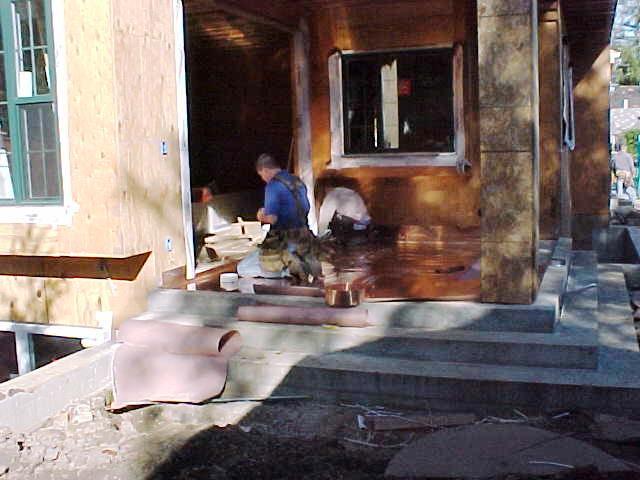

  Janal Heating: Outside surface of the
  column is covered with copper

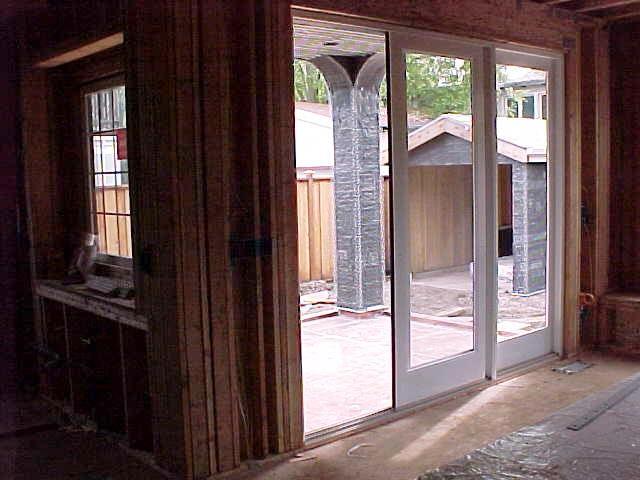

Janal Heating: Outside Column
surface is covered by copper

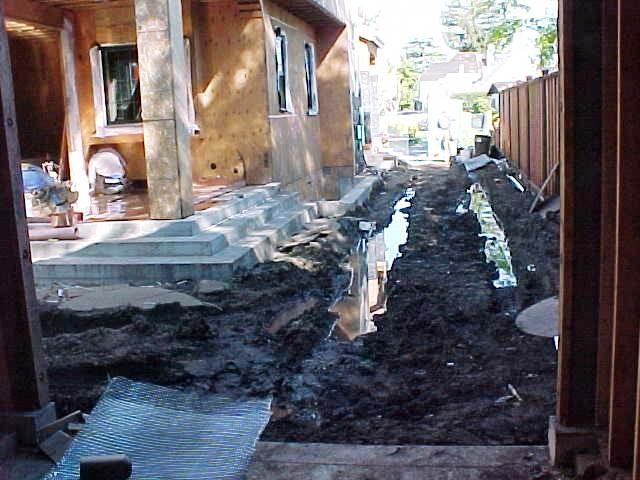

  Janal Heating: To create waterproofing
  sealing stuff was placed
  along the copper edge, i.e. copper was glued
  to the concrete

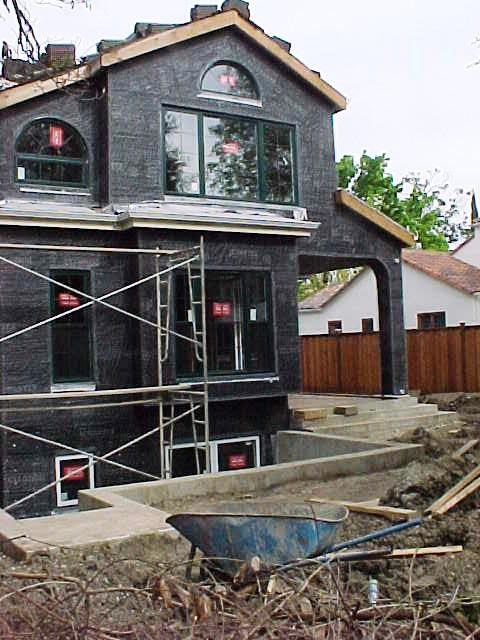

  Janal Heating: PVC downspout is
  installed inside the column
  On the column you can see top and bottom
  white PVC pipe

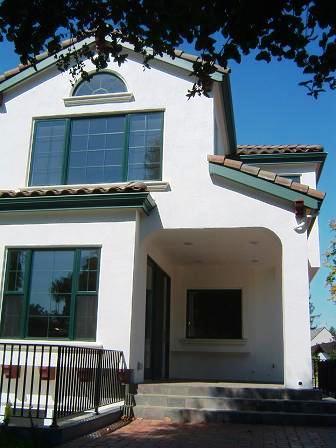

  Janal Heating: You may see
  joint PVC pipe with the metal  pipe,

  which come from Janal heating gutter,
  Said metal pipe and all two joints was

  made by Janal Heating


  Rein water comes to the
  basement floor following way:

  1. From the gutter to the small metal 2" pipe
  (made by Janal Heating)
  2. Via metal pipe and PVC downspout joint
  (made by Janal Heating)
  3. Down along PVC downspout (made by Janal
  Heating)
  4. 99% of said water flashes out the
  column...
  5. About 1% of said water leaks into the
  column and finds its hidden way
  along the inner surface of the basement wall
  6. After that water spreads under the
  hardwood floor all over its area

  As far as I disconnected PVC downspout from
  the gutter water leakage stopped
  and never appear again despite several heavy
  reins and showers


























 |
