New house - Stair
beam replacement
Job address -
300 Sequoia Avenue, Palo alto, CA 94306-1045
 My
Proposition:
1. To open
stairway I want:
- to move toward
North diction (to the street) an existing beam with wall and arch window above
it
- to remove wall
between stairs flights
2. Beam movement
(replacement) shall be along Slopped rafter and parallel to the 1st floor
surface
Movement distance
toward street will be about 42" or less

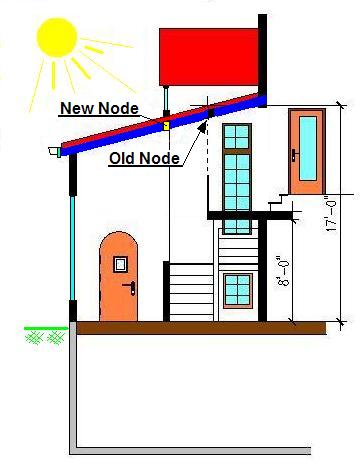

3. New place of
said beam is shown with red color on the above picture
4. An existing
beam with wall and arch window above it will be moved along existing Sloped
rafter...
5. I don't want
any post to support new node where beam replaced will be connected to the
slopped rafter
|
